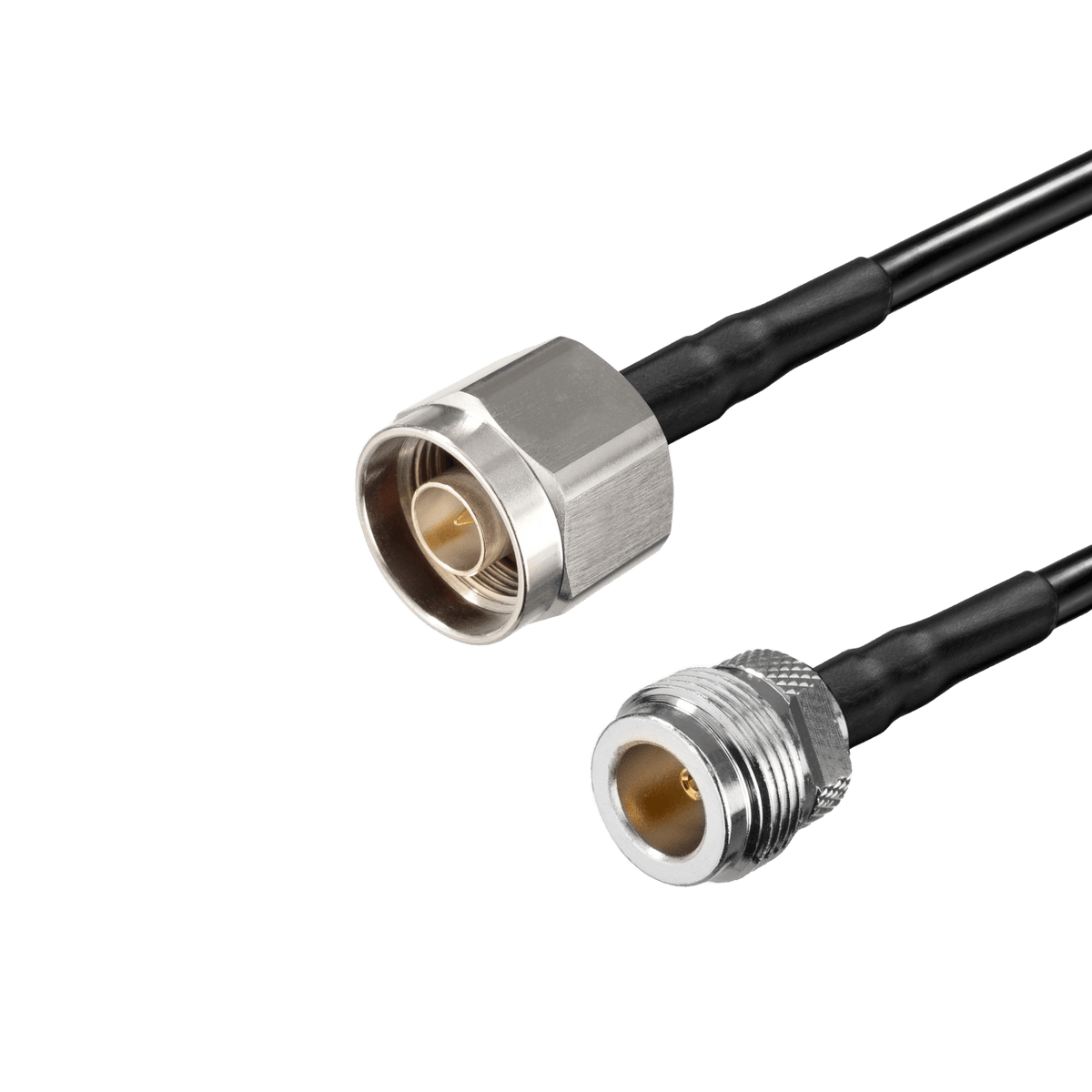

RBT LMR 200-Series Coaxial Cable - N Female - N Male

Low Loss 200-Series Cable - "Comparable to LMR-200"

This high-quality, fully tested Low Loss 200 Cable features high performance, 200-Series coax cable. It is perfect for extending the distance between any outdoor Helium enclosure and LoRaWAN antenna, enhancing your network's performance and reach.

Electrical Specifications:

• Impedance: 50 Ohm
• Capacitance (pFm): 80.4
• Velocity of Propagation: 85%
• Shielding Effectiveness (dB): >90

Material and Dimensions:

• Jacket: Black PE, Diameter: 4.95±0.20 mm
• Outer Conductor: Tinned Copper Braided, Aluminum Foil, Nominal Diameter: 3.66 mm
• Dielectric: Foam PE, Diameter: 2.95±0.10 mm
• Inner Conductor: Copper Clad Aluminum, Diameter: 1.12±0.02 mm

Mechanical Specifications:

• Bend Radius (Installation): 12.7 mm
• Bend Radius (Repeated): 25.4 mm

Environment Specifications:

• Operating Temperature: -40°C to +85°C
• Installation Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
• RoHS Compliant
